Operational Security with PoshC2 Framework

This post describes a new capability that has been deployed within PoshC2, which is designed to assist with revealing a wider set of target environment variables at the dropper stage, as part of operational security controls.

Imagine the following scenario.  You’ve deployed IP address white-listing on a proxy in order to limit implant installation to a specific environment.  A connection arrives back from a host that’s not associated with your target environment, so the connection is dropped and PoshC2 never sees the incoming connection attempt.  By adding some additional logging on the proxy, and utilising the new CookieDecrypter.py script, you can now reveal specific environment variables about where the dropper was executed.  This information allows for better decision making on what to do next in this scenario.  It yields greater situational awareness.

The background

When carrying out red team testing, a number of safety checks are required to:

  1. Environmentally key the implant to the target environment variables.
  2. Make sure only those targeted assets are compromised.

The purpose of this post is not to discuss these safety measures in depth.  Rather, it is to instead focus on the problem wherein a target environment has been IP white-listed on the attacking infrastructure, but a connection has come back from an IP address not already on that approved list of target environments.  Large organisations do not always readily or thoroughly understand their full external IP address range, or do not force tunnelling of all traffic across a VPN.  It is therefore not uncommon to receive legitimate connect backs from non-whitelisted sources.

As a simulated attacker, you now have a decision to make; you have sent very unique malicious links to a target employee and those have been verified as followed, and certain local checks have been satisfied, but the connection is coming from an IP address that’s not on your white-list. The dropper must have been executed and has consequently called back to your attacking infrastructure to download the core implant from the PoshC2 server.  Now what?

Further detail

PoshC2’s implant is a staged implant and utilises a dropper to satisfy certain criteria before calling back to the C2 server to pick up a core implant. The dropper uses a unique encryption key specific to the PoshC2 instance, but not unique to each dropper. Each dropper shares the same encryption key; it is only when the core implant is sent down that each implant is uniquely keyed for all further communication.

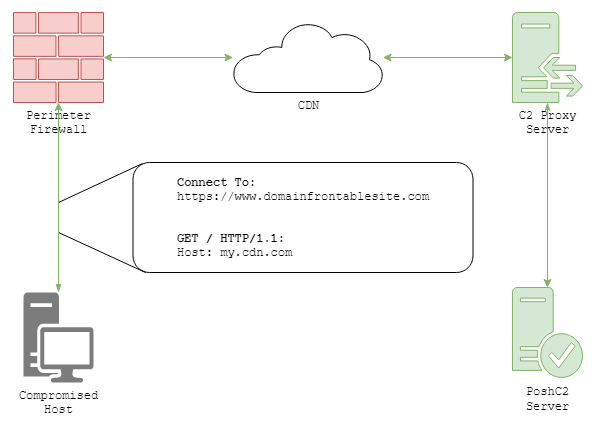

Generally, the following infrastructure is set up to support a PoshC2 instance. This includes a number of redirectors or Internet Proxies that forward C2 communications back to the PoshC2 instance, limiting exposure of the C2 servers and allowing a flexible approach to building many redirectors to combat take-downs or blocked URL’s.

The redirectors can be made up of any infrastructure or technology, whether it be cloud based redirectors such as CloudFront, or applications running on a host such as Socat, python or Apache, to name a few.

Apache is a preference for its rewrite rules, which can be used to make smart decisions on traffic traversing the proxy. White-listing the X-forwarded-for address is one common method and can be written into rewrite rules using a RewriteMap, as follows.

Something you might not know

The configuration of the dropper has now been modified to retry multiple times after a timeout, if the connection returns a HTTP 404 response. This provides extra time to make a decision on whether to add the IP address to the white-list, without losing the implant. If the IP address is then added to the white-list, then when the dropper connects back, it will be allowed to traverse to the PoshC2 server instance and download the core implant.

Extra help

The CookieDecrypter.py script was created to assist in decision making by providing more information. The connection from the dropper includes a cookie value that details useful environment variables such as those detailed below, however it is encrypted with the key created on initialisation of the PoshC2 instance.

  • Domain
  • User Account
  • Hostname
  • Implant Architecture
  • Process ID
  • URL

Capturing the cookie

By default the cookie value will not be stored anywhere on the proxy server. As previously mentioned, Apache is powerful and includes a number of options to assist, one of which is ModSecurity.

Installing ModSecurity:

apt install libapache2-modsecurity

Enabling the configuration to capture cookies for requests that are returned a HTTP 404 response:

Now if a dropper connects and gets a 404 response, the following log entry will be created in “/var /log/apache2/sec.log”:

The script

The script CookieDecrypter.py has been created to ingest the log file and parse the ‘SessionID’ from the log file, then connect to the PoshC2 database to retrieve the encryption keys and use the encryption functions to reverse the cookie value. It has to be executed on the PoshC2 server.

python CookieDecrypter.py log.txt

Conclusion

With increased visibility comes better decision making.  Knowledge of the workstations domain and the user generally provides most, if not all, of the information you need to assess whether an asset is in scope.  We have multiple layers of protection in our approach to risk management to ensure that we stay on the right side of the rules of engagement, and this is just one of them.  We recommend that you develop your own set of risk management procedures too.



Introducing PoshC2 v4.8 – includes C# dropper, task management and more! – Part One

We recently released version 4.8 of PoshC2 Python, which includes a number of fixes and improvements that help facilitate simulated attacks. This is the first post in a series of posts that will include some of the details around the fixes and updates, alongside a number of other posts which will show some of the other cool features we have been working on in the background.

C Sharp (#)

As of PoshC2 version 4.6, a C# implant has been available. The main driver behind this implementation was to stay clear of System.Management.Automation.dll when an environment is heavily monitored and the EDR product can detect loaded modules inside a running process. Granted, not all EDR products are currently doing this, as it can create a hit on performance at the endpoint level, but its important to understand the OPSEC implications of running different C2 droppers.

This has been a work in progress since the release and is continually improving, and we believe this will be the way forward in months to come against advanced blue teams with a good detection and response capability across the organisation. Currently the implant is fully functional and allows an operator to load any C# assembly and execute this in the running process. This allows the user to extend the functionality massively because they’re able to load all the great modules out there in the wild, created by other infosec authors. The way this is loaded uses the System.Reflection namespace. The code can then be called using .NET reflection, which searches inside the current AppDomain for the assembly name and attempts to either run the entry point given or the main method of the executable. An example usage is as follows, for both run-exe and run-dll:

run-exe:

run-dll:

Task Management

One of the issues we’ve overcome in this release was around tracking tasks; there was no way to determine what output related to which issued command. This was largely due to the implant not using task ID’s that were tracked throughout the entire command process flow.

Typically, this was fine because you know what command you’re running, but when multiple people are working on the same instance, or if multiple similar commands are run, then it could be difficult to figure out what output came from which command. This also made tracking failed commands fairly difficult if not impossible to find. The following screenshots shows the output inside the C2Server and the CompletedTasks HTML file:

Figure 1: How commands were issued and returned against an implant

Figure 2: The old format of the tasks report

Furthermore, tasks were only logged in the database when the implant responded with some output. Now, tasks are inserted as soon as they are picked up by the implant with a start time, and updated with a completed time and the desired output when they return. This allows us to track tasks even if they kill the implant or error and never return, and to see how long they took. It also allows us to reference tasks by ID, allowing us to match them in the C2Server log and to only refer to the task by its ID in the response, decreasing message length and improving operational security. An example of the output is shown below:

Figure 3: The new task logging

The generated report then looks like this:

Figure 4: The new report format

User Logging

The astute amongst you will have noticed the new User column in the report above. Another improvement that has been made in relation to tracking tasks is user logging. Now when you start the ImplantHandler you are prompted for a username; it is possible to leave this blank if required, but when PoshC2 is being used as a centralised C2Server with multiple users it’s important to track which user ran which task as shown in the examples below:

Figure 5: You are now prompted for a username when you start the ImplantHandler

All tasks issued from that ImplantHandler instance will be logged as that user, both in the C2Server log and in the report.

Figure 6: If a username is set it is logged in the task output

Figure 7: The username is also logged for the task in the report

For scripting and/or ease of use, the ImplantHandler can also be started with the -u or --user option, which sets the username, avoiding the prompt:

python ImplantHandler.py --user "bobby b"

Beacon Timing

The way beacon sleep times were handled was inconsistent amongst implants, so now we’ve standardised it. All beacon times must now be in the format of value and unit, such as 5m, 10s or 2h. This is then displayed as such for all implant types in the ImplantHandler. As seen below, the fourth column states the current beacon time in seconds, whereas now we show only the output in the newer format.

Figure 8: The old beacon time format

Figure 9: The new beacon time format

Validation has also been added for these, so attempting to set an invalid beacon time will print a suitable error message and do nothing.

Figure 10: The validation message if an invalid format is set

We’ve also changed the implant colour coding so that they are only flagged as timing out if they haven’t checked in for a multiple of their beacon time, as opposed to a hard coded value.

Previously the implants would be coloured as yellow if they hadn’t checked in for 10 minutes or more, and red for 60 minutes or more. Now they are coloured yellow if they have not checked in for 3x beacon time, and red for 10x beacon time, granting far more accurate and timely feedback to the operator.

Figure 11: Implant colour coding has been improved so that the colour is dependent on the beacon time

C2Viewer

The C2Viewer was a legacy script used to just print the C2Server log, useful when multiple people want to be able to view and manipulate the output independently.

There were a few issues with the implementation however, and there was a possibility that it would miss output as it polled the database. Additionally, as this was an additional script, it added maintenance headaches for updates to task output.

This file has now been removed, and instead if you want to view the output in the same way, we recommend that you run the C2Server and pipe it to a log file. You can print the log to stdout and a log file using tee:

python -u C2Server.py | tee -a /var/log/poshc2_server.log

This output can then be viewed and manipulated by anyone, such as by using tail:

tail -f -n 50 /var/log/poshc2_server.log

This method has the added benefit of storing all server output. While all relevant data is stored in the database, having a backup of the output actually seen in the log during usage can be extremely useful.

Further details can be found in the README.md.

Internal Refactoring

We’re also making strides to improve the internals for PoshC2, refactoring files for clarity, and cutting cyclic dependencies. We aim to modularise the entire code base in order to make it more accessible and easier to maintain, including making changes, but as this is a sizeable change we’ll be doing it incrementally to limit the impact.

Conclusion

There have been quite a few changes made, and we’re aiming to not only improve the technical capabilities of PoshC2, but also the usability and maintainability.

Naturally, any changes come with a risk of breaking things no matter how thorough the testing, so please report any issues found on the GitHub page at: https://github.com/nettitude/PoshC2_Python.

The full list of changes is below, but as always keep an eye out on the changelog as we update this with any changes for each version to make tracking easier. This is the first blog of a series of blogs on some additional features and capability within PoshC2. Stay tuned for more information.

  • Insert tasks when first picked up by the implant with start time
  • Update task when response returned with output and completed time
  • Log task ID in task sent/received
  • Add ability to set username and associate username to tasks issued
  • Print user in task information when the username is not empty
  • Improved error handling and logging
  • Rename CompletedTasks table to Tasks table
  • Method name refactoring around above changes
  • Pull out implant cores into Implant-Core.py/.cs/.ps1
  • Rename 2nd stage cores into Stage2-Core.py/.ps1
  • Stage2-Core.ps1 (previously Implant-Core.ps1 ) is no longer flagged by AMSI
  • Use prepared statements in the DB
  • Refactoring work to start to break up dependency cycle
  • Rename DB to Database in Config.py to avoid name clashes
  • Pull some dependency-less functions into Utils.py to aid dependency management
  • Fix download-file so that if the same file is downloaded multiple times it gets downloaded to name-1.ext name-2.ext etc
  • Adjust user/host printing to always be domain\username @ hostname in implants & logs
  • Fix CreateRawBase payload creation, used in gzip powershell stager and commands like get-system
  • Added ImplantID to Tasks table as a foreign key, so it’s logged in the Tasks report
  • Added Testing.md for testing checklist/methodology
  • Fix Get-ScreenshotAllWindows to return correct file extension
  • Fix searchhelp for commands with caps
  • Implant timeout highlighting is now based on beacon time – yellow if it’s not checked in for 3x beacon time and red if not checked in for 10x beacon time
  • Setting and viewing beacon time is now consistent across config and implant types – always 50s/10m/1h format
  • Added validation for beacon time that it matches the correct format
  • Fix StartAnotherImplant command for python implant
  • Rename RandomURI column in html output to Context, and print it as domain\username @ hostname
  • Move service instructions to readme so that poshc2.service can just be copied to /lib/systemd/system
  • Removed C2Viewer.py and added instructions for same functionality to readme just using system commands

Extending C2 Lateral Movement – Invoke-Pbind

Invoke-Pbind is a mini post exploitation framework written in PowerShell, which builds C2 communications over SMB named pipes using a push rather than a pull mechanism. Pbind was initially created to overcome lateral movement problems, specifically in restricted environments where the server VLAN could not directly talk to the user VLAN (as it should be in every environment). The tool was designed to be integrated with any C2 framework or run as a standalone PowerShell script.

Video Demonstration

If you just want to skip to the video tutorial, then you can find that here and at the end of this post.

The Problem: Segregation and Strict Firewalling

This is useful when you have compromised an organisation and have C2 comms over HTTPS, traversing the corporate proxy server out of the network from user’s workstations, but the target dataset that you are looking to obtain is located down server VLAN with a firewall restricting both inbound and outbound traffic. In that scenario, firewall rules are always going to allow for specific traffic to traverse over pre-approved services. The following diagram illustrates one such situation, where the environment allows limited services from the user VLAN to the server VLAN, but allows no ports in the reverse direction.

What options exist for C2 comms

The following are some options for C2 comms and their mitigations, resulting in failure.

Method Mitigation Result
Direct Internet Access Blocked by Firewall Outbound Fail
Traverse Through HTTP Proxy Blocked by Firewall Outbound Fail
TCP Reverse Shell Blocked or likely detected scanning for open ports Fail
TCP Bind Shell Blocked by Firewall Inbound or service running on open ports, no closed ports detected Fail
ICMP Blocked by Firewall Outbound Fail
Daisy over SMB in User VLAN TCP port 445 blocked from servers to workstations Fail
Daisy over HTTP in User VLAN Same as standard reverse all blocked ports Fail
DNS Authoritive DNS is only permitted by the Proxy server, thus not possible for C2 comms from the server VLAN. Fail

To be clear, at this point the problem isn’t about getting execution, it’s about having reliable C2 comms that afford the user output for all commands executed and to use the implant as a foothold or staging point to further attacks against servers in the restricted environment.

The Solution

“A named pipe is a logical connection, similar to a Transmission Control Protocol (TCP) session, between the client and server that are involved in the CIFS/SMB connection. The name of the pipe serves as the endpoint for the communication, in the same manner as a port number serves as the endpoint for TCP sessions. This is called a named pipe endpoint.” – https://msdn.microsoft.com/en-us/library/cc239733.aspx.

.NET has a class for creating and interacting with named pipes:

Where TCP port 445 is open into a server environment, we can overlay the SMB protocol and use a named pipe to share data between the workstation and server, providing a method for exchanging data (comms). The following commands make up the basis of creating a named pipe with an access rule that allows “everyone” access:

Since the days of abusing IPC$ with anonymous access (CVE-199-0519), and RID cycling your way to a plethora of goodies, Microsoft have said “no – though shall not pass” – non Microsoft direct quote. In a domain environment, any user can create a domain authenticated session to the $IPC share, which can then be piggy backed to gain access to the named pipe. Here is a simple script in PowerShell to create an authenticated session. One quick problem to overcome: While the ‘AccessRule’ applied to the pipe may look like it allows “everyone” access to the named pipe, this is not actually the case.

Interacting with a named pipe is also fairly straight forward as long as you know the data type of what is being read; as we create the server we know how to handle to pipe as shown by using a simple StreamReader:

Design

When we came up with Invoke-Pbind, the following principles were implemented.

Client/Server Model

To allow for inclusion in a C2 framework, two script blocks were created, client and server. The server starts and sets up the named pipe on a remote target (server). The client then connects to the named pipe and exchanges messages over TCP port 445 (SMB). The client runs through an existing C2 implant and by using script blocks and run spaces, it is possible to use the client non-interactively for better interaction with most C2 frameworks.

Token Passing

When sharing a common space such as a named pipe, it is imperative that messages exchanged between the client and server are not overwritten prior to being picked up by their counterpart. Control messages are used in combination with TRY and IF statements to create rules for when a client or server should read or write from the named pipe.

Security

During the generation of the script blocks, at run time, a unique key is generated and used to encrypt messages between client and server. Pbind supports AES 256 encryption. To initiate a connection to the named pipe from a client, a shared secret is also supported to stop tampering with the named pipe. If the client does not provide the correct secret, the named pipe will close.

Injection/Execution

There are two main methods included that inject the implant into target hosts. These are modified versions of Invoke-WMIExec and Invoke-SMBExec (credit to Kevin Robertson for these scripts); both scripts have been updated to support passing passwords, where previously they only accepted hashes for authentication. The implant is a self-executing script block that is passed as the payload. The script runs WMIExec by default but contains a switch parameter to invoke SMBExec:

To provide additional deployment flexibility the script also includes an exe method. This method uses CSC and Windows .Net automation DLL to compile the implant into an executable that can then be deployed and executed through any means.

NOTE: Creating a named pipe does not require administrator credentials so the executable can be run as a non-privileged user. On the other hand, WMIExec and SMBExec require administrator privileges.

The exe option continues to generate unique variables that are hardcoded into the executable, for use in cryptography and such like. The exe option can be used offline to create an executable implant and is not tied to an interactive session through a C2. To talk to the implant, the script supports a CLIENT option that is used to interact with a deployed implant, the options for which are provided when the implant is compiled:

This flexibility allows for the deployment through any means:

  • DCOM
  • RDP
  • Shared Folders
  • WinRM
  • SCCM
  • Anything……

There are a number of options that are configurable. If no options are selected, the script reverts to pre-set or randomly generated values. The following options are configurable:

  • KEY – Defaults to a randomly generated AES 256 Key – Allows for a key to be specified, commonly used in client mode.
  • SECRET – Defaults to random 5 character value – Allows for specific secret to be used.
  • PNAME – Defaults to random 8 character value – Allows for specific pipe name to be chosen.
  • TIMEOUT – Defaults to 60 second – Used to change the wait time for the client to connect to the Implant, used in slow networks.
  • EXE – Generates a stand-alone executable;
  • CLIENT – Runs the script in client mode to connect to a deployed Executable;
  • TARGET – used to specify a remote IP Address.
  • Domain/User/Password/Hash – used to provide credentials for authentication.
  • Domain2/User2/Password2 – used to map a drive to the target system, when a hash is being used as the primary authentication mechanism.
  • Dir – used in EXE mode to output the generate executable.
  • Automation – used in EXE mode, directory location of the Automation DLL.

Interaction

There are 3 main functions that have been created to interact with the implant from a client. The first and probably the most useful, especially when we introduce templates, is Pbind-Command. This simply registers a command in a variable that is read in by the client and passed to the implant (server) before being executed. A simple example is shown below:

Pbind-module c:\folder\powerup.ps1The second is Pbind-Module, which allows you to read in any other ps1 file and have it injected into memory on the implanted host. Pbind-Command can then be used to execute any of the functions in the ps1 script. This has a limitation and does not work well within a C2 setup, because all scripts have to be local to the client. In most cases the client is already running on a target workstation and would require all scripts to be uploaded to the client before being sent on to the implant.

Pbind-Squirt was a designed to help resolve the limitations of Pbind-Module. The idea for this function was to embed a number of scripts as base64 objects into the script that can then be called and auto executed into memory on the client. The only one that has been embedded is PowerUp, to assist with asset review on newly implanted hosts.

However, in practice neither Pbind-module nor Pbind-squirt were optimal and instead a new solution was constructed, called ‘Templates’. Effectively this was just a better way to interact with the Pbind-Command function. It was decided that by creating a number of small scripts which can automate tasks, it is possible to carry out similar ideas to Pbind-module and Pbind-squirt. Tasks such uploading mimikatz and extracting passwords, uploading PowerView and running queries or uploading invoke-SMBExec and attacking other machines, can all be scripted using a similar template to the one below:

The best way to see how the script runs is to download the script and have a go. The screenshot below shows a simple example of running the script locally under the context of another user, while also executing commands.

Video Tutorial

We have created a video tutorial to help illustrate the use of Invoke-Pbind.

Download

github GitHub: https://github.com/nettitude/PoshC2/blob/master/Modules/Invoke-Pbind.ps1

Making PoshC2 More Accessible With a $5 VPS

Users may find it difficult to host a PoshC2 server as it requires a Windows host, either directly connected to the Internet or in a position to be NAT’d through a firewall from an Internet facing C2 proxy. In this short post we’re going to show you how you can solve this problem in under 30 minutes with a $5 VPS.

For this to work you will need to create a small VPS from any provider. In this tutorial we’re going to use Digital Ocean, but feel free to use AWS, Azure, Vultr or one of the other providers out there.

First, start by creating a simple $5 per month  Digital Ocean droplet, using Ubuntu 16.04 or similar. The reason we’re using Ubuntu 16.04 is their tutorial for OpenVPN has been developed on this version, and we want to keep it simple. Once you’ve created the droplet, it should look something like this in your Droplets tab:

The next thing we need to do is get the host updated with the latest security patches, so perform an apt-get update and upgrade.

When you’re all up-to-date, we’ll install Apache2 which will be used as both the native web server and the proxy with which to forward all PoshC2 communication traffic through to your Windows host. It is important to note we only want the communications traffic to be forwarded and no other URLs.

To start this off, install apache as per the instructions below and enable the modules to allow proxying with Apache.

  • apt-get install apache2
  • a2enmod ssl
  • a2enmod rewrite
  • a2enmod proxy
  • a2enmod proxy_http
  • a2enmod headers
  • service apache2 restart

Once the default Apache2 install has completed, we find it easier to completely delete all files in the ‘sites-enabled’ and ‘sites-available’ folders of /etc/apache so that we can start from a fresh config, but this is purely an optional thing so do whatever best suits you and your setup. With one config file, we split out the virtual hosts and have both HTTP (port 80) and HTTPS (port 443) in one place.

The file we’re going to create for this postis called proxy.conf and should be located in the sites-available folder – /etc/apache2/sites-available/proxy.conf

The configuration should look something like the one below. Obviously yours may differ slightly if you decide to use multiple ports or have different virtual hosts with multiple names going through the same Apache server. However, to keep things simple, this is the default configuration without the rewrite rules applied.

Enable this site in Apache2 by either creating a symlink or by running this command:

  • a2ensite proxy.conf

This should then create a symlink in the sites-enabled directory as follows:

  • /etc/apache2/sites-enabled/proxy.conf -> /etc/apache2/sites-available/proxy.conf

Once you’re all done, restart your Apache2 service to ensure you have no errors.

  • service apache2 restart

The next thing you need to do is add your PoshC2 Apache Rewrite rules to the configuration.  This is where it can get quite complex depending on what you want the rules to do. As an example, when performing a Red Team engagement, your C2 infrastructure should be sufficiently locked down and should only allow implants from the correct IP address range of the Customer.

To add whitelisting on the C2 proxy, create a file with all the IP addresses that are known to be the client. There is a slight nuance with Apache as you have to add the list like this ( /etc/apache/whitelist):

Once you have the whitelist, you can use a function in the rewrite rules called RewriteMap to add the IP address list, to then use in the rewrite conditions. Here is a simple Rewrite Rule which will take the list above – if this is not found it will not process the rewrite rule. You have to do this for each rewrite rule you want for each URL. In this case we are applying to the /connect path as this is where the implant gets the stager, but if you customize the PoshC2 URLs then this may be different.

To complete the full Apache config, use the link below as a guide, but note you may need to change this for your PoshC2 setup as you customize the URLs for better evasion. Don’t forget that if you do change your URLs when setting up PoshC2 there is a file called apache2.conf in the root directory which created the rewrite rules for you. This does not add a whitelist but you can do this using the above config.

Now we have the Apache2 web server with our rewrite rules, we need to connect our Windows host to the this VPS using OpenVPN. I’m not going to walk through the exact steps to setup OpenVPN as there is a really good step by step guide which should take no more than around 20-30 minutes to follow and setup:

Once you’ve followed the guide to setup OpenVPN on the host in TUN mode, you can drop your client config onto your windows host. The OpenVPN server.conf configuration should look similar to this. This one is hosted over TCP 53 as we have 443 in use by the Apache Web Server.

Next, following the instruction in the Digital Ocean tutorial, create a client configuration file which matches the server settings and key files you setup and download this to your Windows host. Use the following link to install the Windows client, which should add a small icon to the task bar where you can import your configuration file to and connect.

At this point you should be nearly done. Once you get OpenVPN to successfully connect to the VPS, you can provide the Windows IP address in the Apache2 rewrite rules as the PoshC2 server and it will direct all traffic aimed for PoshC2 directly to the host. Remember that with this setup you will need to provide the external IP address or host name of the VPS as the PoshC2 server as shown in the image below – otherwise the payloads and droppers will be created with the wrong C2 server.

Having this kind of setup makes it extremely easy to deploy PoshC2 and should take no more than around 30 minutes of setup to have things fully weaponised and ready to go. Check out the latest updates for PoshC2 v3 from the blog below which induces a socks proxy (SharpSocks) to allow RDP via a HTTPS beacon.
